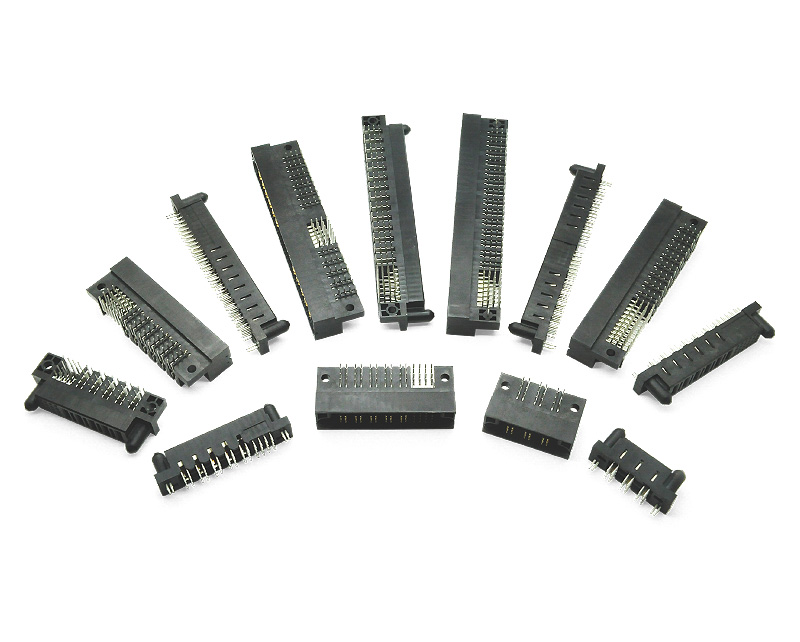

JYP  Series introduction: JYP  power   connector  has  spring   contact,  it  is  integration,   small  size,  high   power  current
conduction  capability, contact  smoothly,  mate  with guide  position,  high connect  stabilization.  The  contact is
made from high performance copper  alloy, gold plated at mate area.  Housing is made from high heat-resisting
thermoplastic,  glass  filled,  UL94-V0,  Black.  The  contacts   include  power  contact  and  signal  contact,  The
distance of  power contacts is  5.08mm, 6.35mm, 7.62mm,  9.525mm, The quantity  and sequence of  the power
and  signal contacts  could be  ranged  by the  customer, at  the  same outer  size of  the  connector. JYP  series
power connector could interchange  with FCI PowerBlade series, TYCO Multi-Beam X1  series and MOLEX E-
87677&E-87710 series connector. It was certificated by UL, the certificate No.:E358633.

Online Inquiry

Product Application
JYP series connector application area is digital communication, internet network etc., It is used in the connection of PCB to PCB of Power module, server, UPS, storage, communication device.

workingh environment

Operating Temperature：-40℃~+125℃（Include 40℃ temperature rise）

Relative Humidity：40℃时，95%

Vibration： 20~500Hz， 490m/s²

Shock：Acceleration490m/ s²

JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc.

More Products

We are doing the OEM & ODM Connectors based on customers' needs

About us

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.

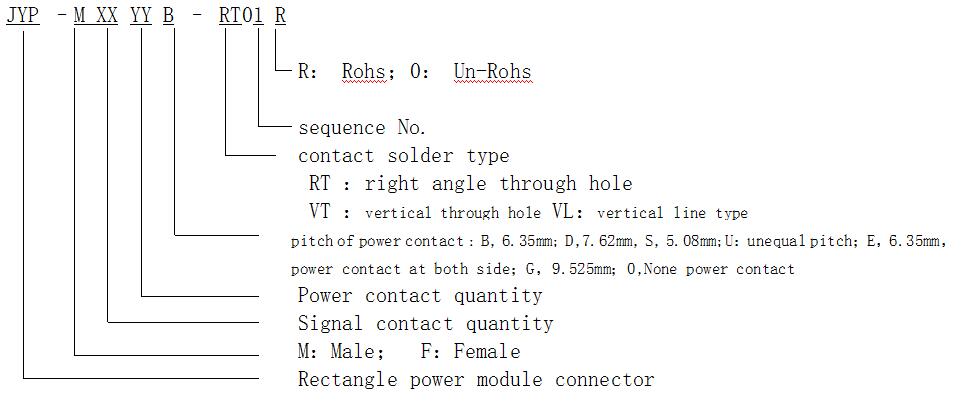

Part No. system:

JYF Product Application

Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc.

Work environment

Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise）

Relative Humidity ：40℃，90-95%

Air pressure ：40KPa

Vibration：10~500Hz， 100m/s²

Shock： Acceleration300m/ s²

Mian Technical Parameters

Rated Current：3A（20℃）

Contact Resistance：≤25mΩ

lnsulation Resistance：≥1000MΩ

Voltage Rating ：300V AC

Withstand Voltage：750V

Mechanical Life：500 times

Insertion Force Per Pin ≤2N withdraw force Per PIN≥1.2N

Part Number System

JYF –XX YY VT -001

sequence number

contact solder type

Vertical through hole type Right angle through hole type

Quantity of contacts

Quantity of Pin hole in housing

Printed gold finger connector

Current JYF Model list:
JYF 10 PIN	JYF 26 PIN	JYF 44 PIN	JYF 70 PIN
JYF 12 PIN	JYF 28 PIN	JYF 50 PIN	JYF 72 PIN
JYF 14 PIN	JYF 30 PIN	JYP 52 PIN
JYF 16 PIN	JYF 32 PIN	JYF 54 PIN
JYF 20 PIN	JYF 34 PIN	JYF 60 PIN
JYF 22 PIN	JYF 36 PIN	JYF 62 PIN
JYF 24 PIN	JYF 40 PIN	JYF 64 PIN
