JDC-4YT(Z)

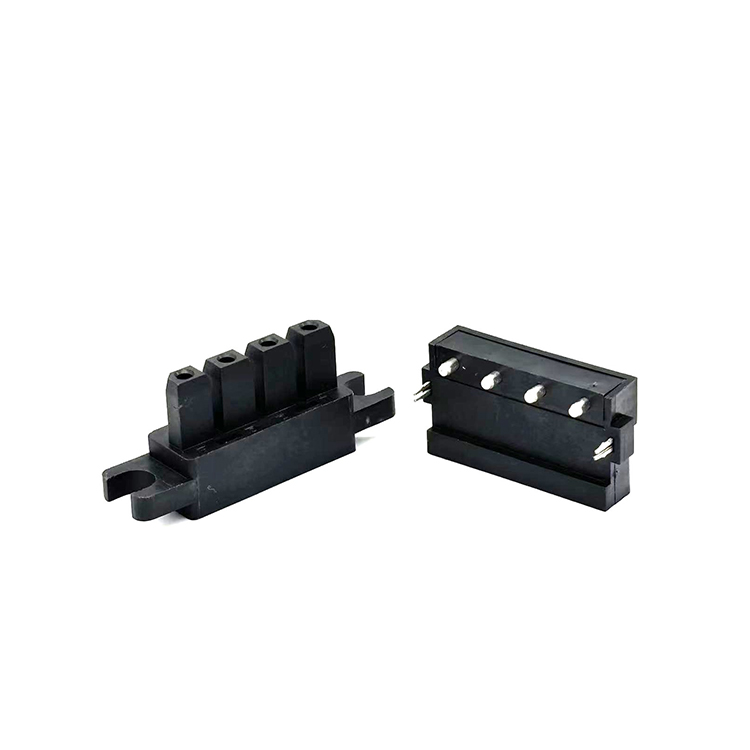

1.Model

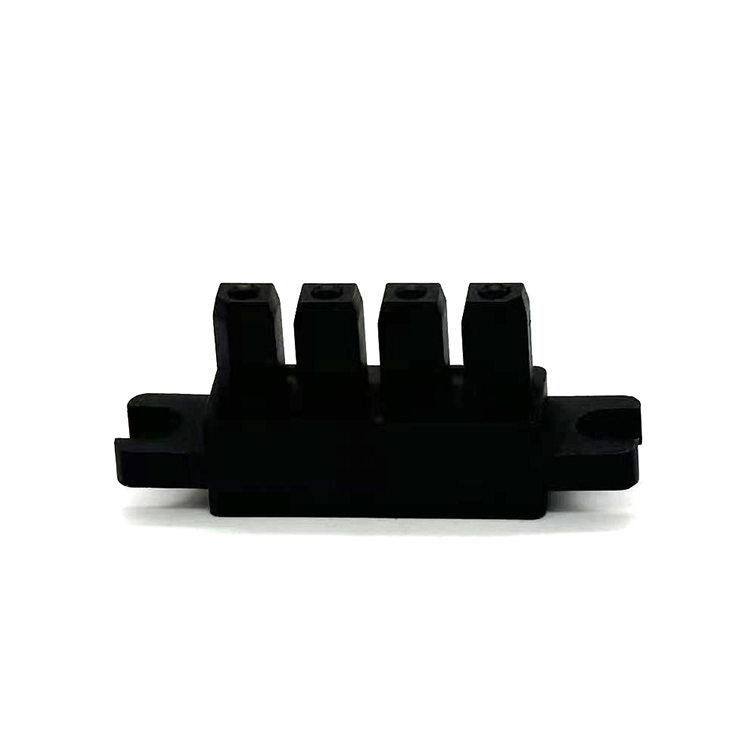

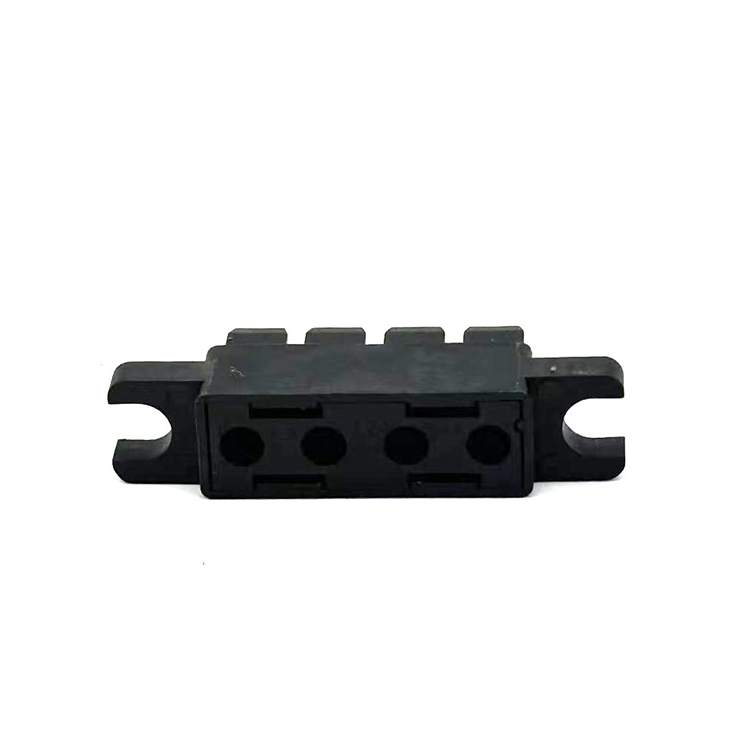

Socket (assembly socket)
JDC-4YZ -XXX Female Connector

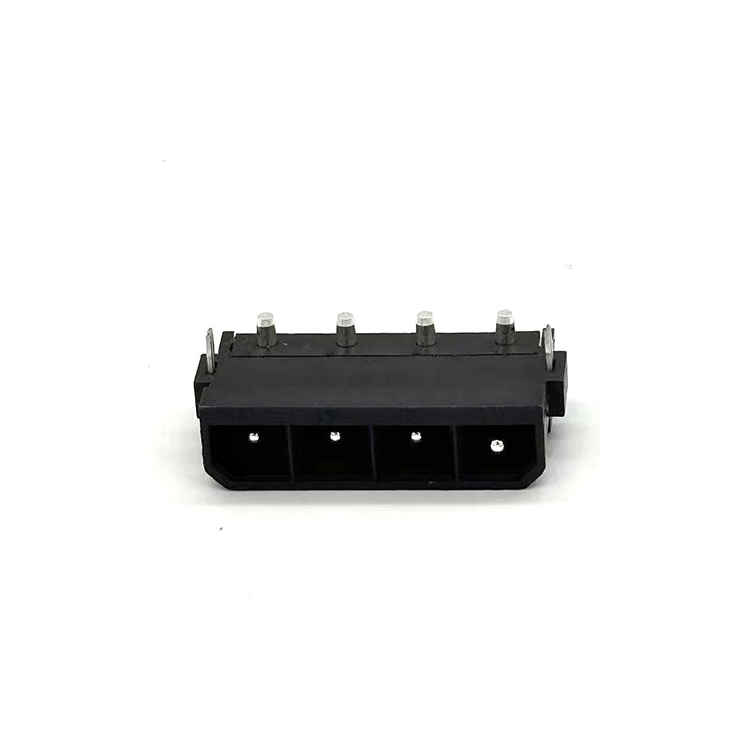

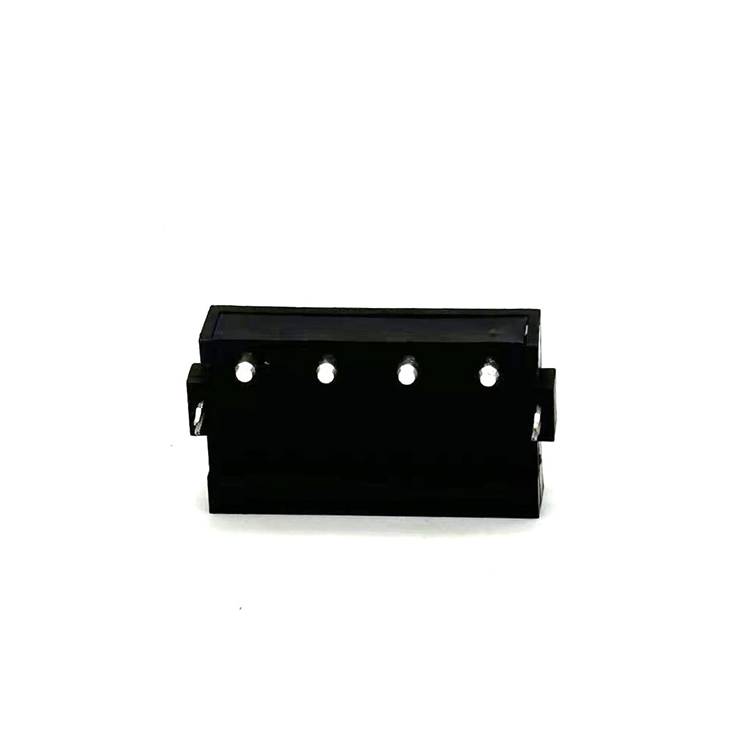

Plug (assembly pin)
JDC-4YT -XXX Male Connector
2. Working Environment
Operating Temperature：-40℃-+125℃

Online Inquiry

1.Model

Socket (assembly socket)

JDC-4YZ -XXX Female Connector

Plug (assembly pin)

JDC-4YT -XXX Male Connector

2. Working Environment

Operating Temperature：-40℃-+125℃

Insulation Resistance		≥1000MΩ（normal atmospheric temperature）
Mechanical Life		200second
Housing Material		Engineering plastics UL94V-0 Black
Contact	Spec	10#
	Contact Quantity	4
	Rated Current	45A/PIN
	Rated Voltage	600V AC
	Contact Resistance	≤0.85mΩ
	Withstand Voltage	normal 3000VAC(normal)
	Surface Finish	Pin: silver plated surface, nickel plated bottom layer Jack: silver plated on the surface of the jacket, gold or silver plated on the crown spring, nickel plated on the bottom layer
	Terminal Style	Plug in crimping type, with PCB soldering type for pins. Long and short pins can be selected to contact in sequence, with a maximum crimping area of 16 square meters for cables. Bulk shipping is available
	Material	Pin、jack	Brass or copper
		Crowm Spring	Beiyllium bronze
