JDC-29Z & JDC-29T

JDC series 29 pin rectangular female male power modular connector                                            Product Information                                                                Product model                                        JDC-29Z Fe

Online Inquiry

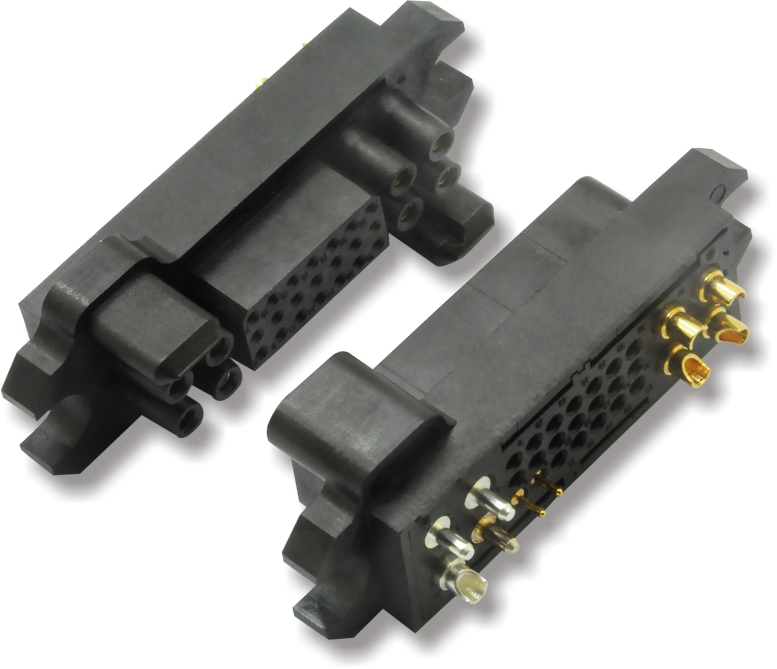

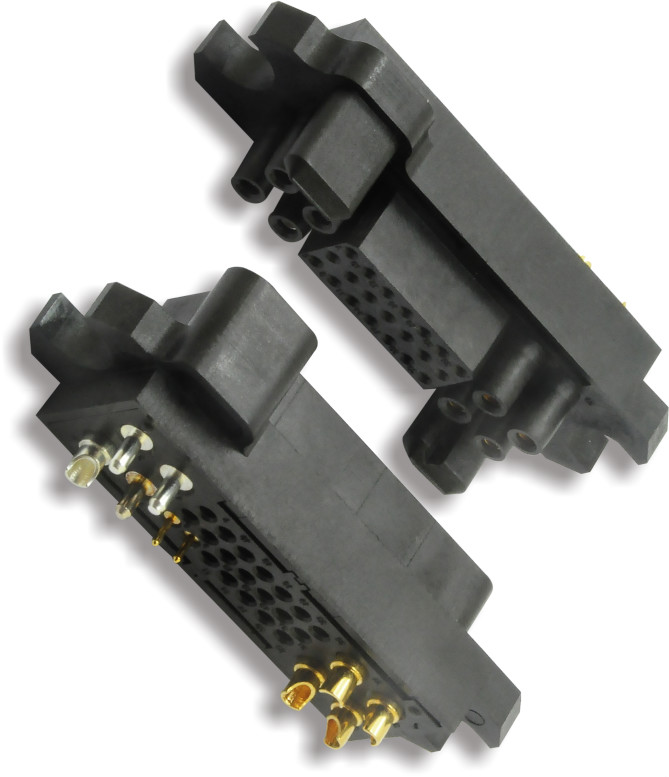

JDC series 29 pin rectangular female male power modular connector

Product Information

Product model		JDC-29Z Female Connector JDC-29T Male Connector
Mechanical Life		1000 times
Insulation Resisitance		≥1000MΩ
Housing Material		PET UL94V-0 Black
Contact	Spec	Signal contact 20#	Power contact 12#
	Contact Quantity	21	8
	Rated Current	5A	35A
	Contact Resistance	≤5.0mΩ	≤1.0mΩ
	Withstand Voltage	1000V	1500V
	Surface Finish	Gold plated over nickel	Silver plated over nickel
	Terminal Style	Crinmping (Y),PCB Tail(B),Solder Cup (H)
	Material	Pin,Jack	Brass or copper alloy
		Crown Spring	Beryllium bronze
Working Temperature		-40℃ ~ +125℃

Product Applications

1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power.
2. UPS systems
3. Contravariant power
4. Drawer low-voltage cabinet etc.

More Products

We are doing the OEM & ODM Connectors based on customers' needs

About us

Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.

Transportation & Payment

JDC-29T

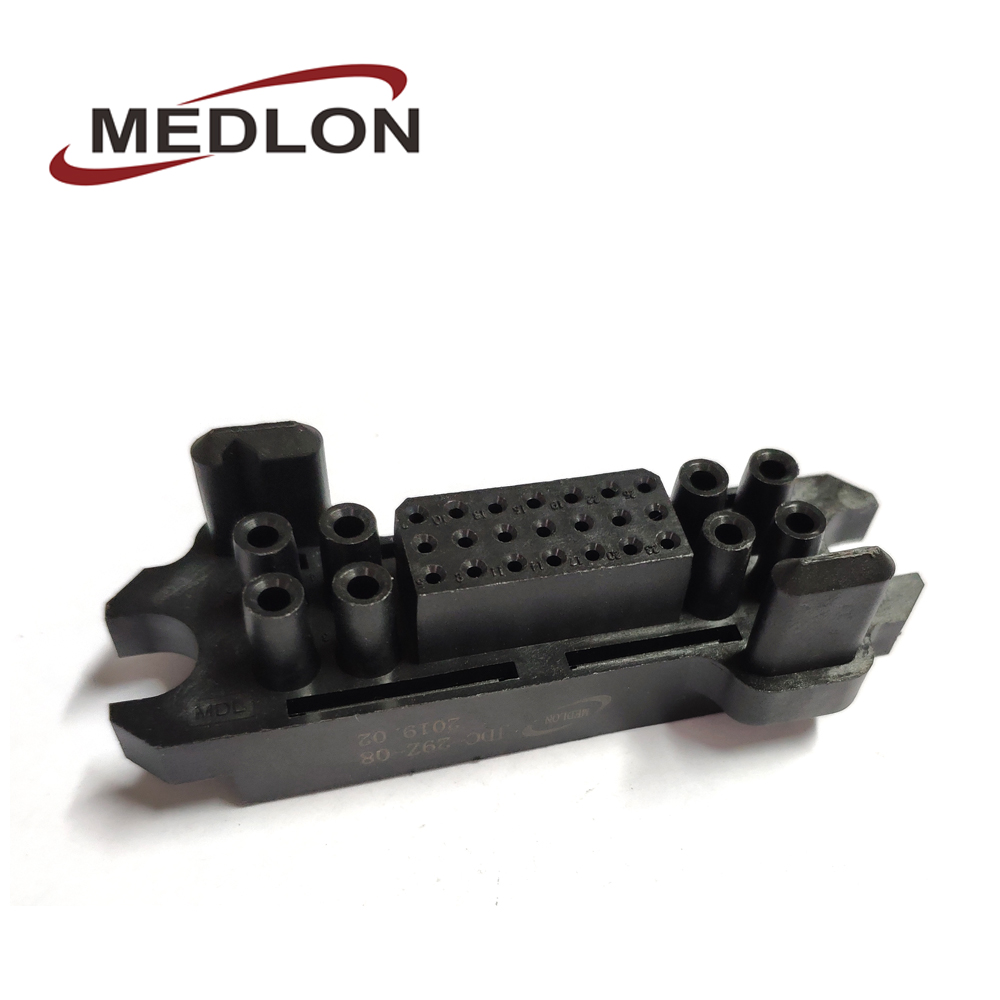

JDC-29Z
