JDC-10T(Z)

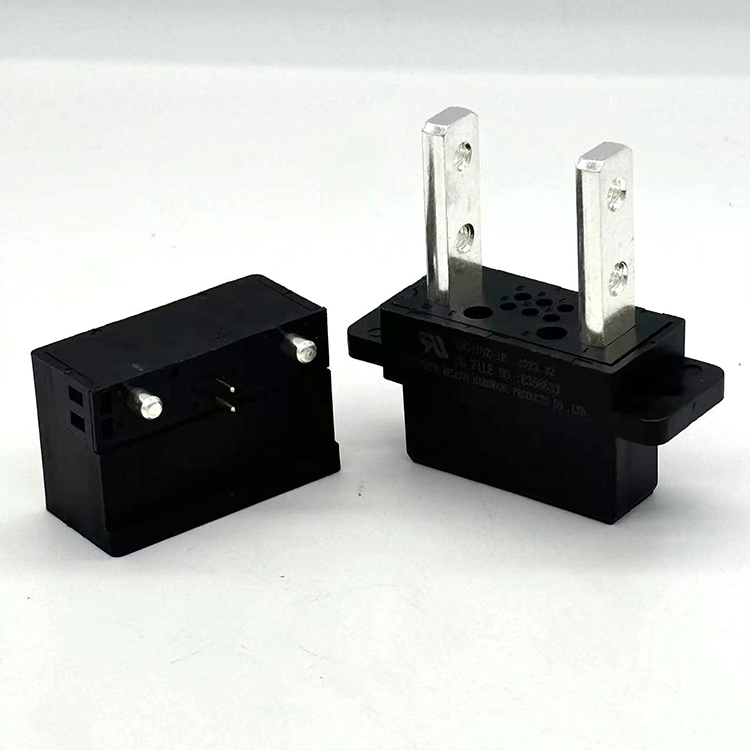

1.Model
Socket (assembly socket)

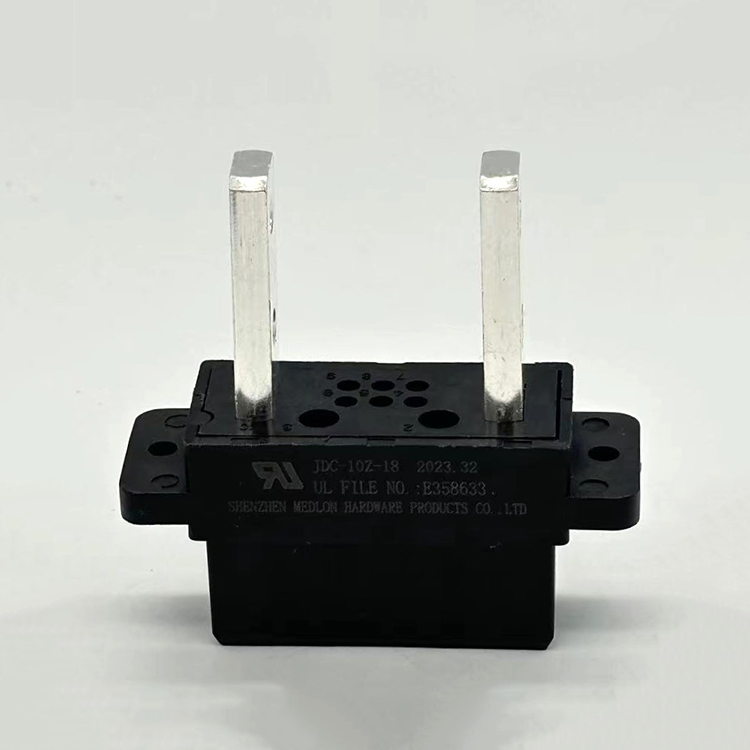

JDC-10Z Female Connector
Plug (assembly pin)

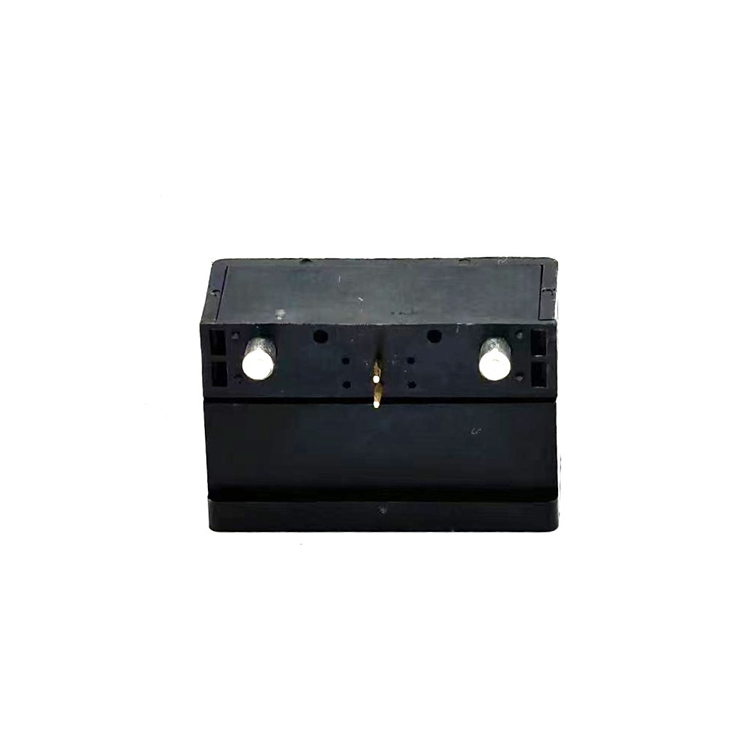

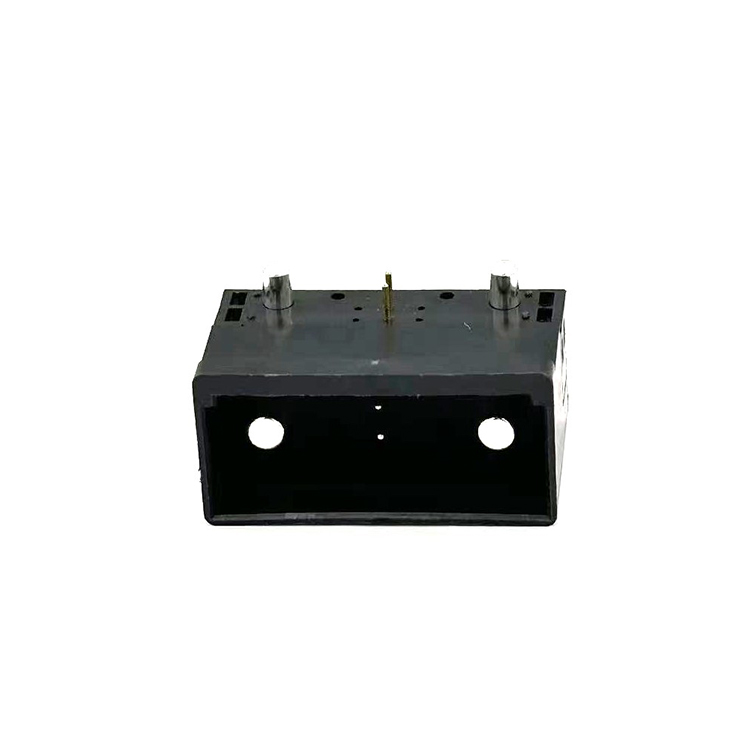

JDC-10T Male Connector
2. Working Environment
Operating Temperature：-40℃-+125℃

Online Inquiry

1.Model

Socket (assembly socket)

JDC-10Z Female Connector

Plug (assembly pin)

JDC-10T Male Connector

2. Working Environment

Operating Temperature：-40℃-+125℃

Insulation Resistance		≥500MΩ（normal atmospheric temperature）>100MΩ(Damp heat)
Mechanical Life		1000second
Housing Material		PET UL94V-0 Black
Contact	Spec	Ф1.0(20#)	Φ2.0(12#)	Φ5.0
	Contact Quantity	6	2	2
	Rated Current	5A	35A	100A
	Rated Voltage	50V DC	250V DC	250V DC
	Contact Resistance	≤0.85mΩ	<2.0mΩ	≤0.45mΩ
	Withstand Voltage	Ф2.0WithΦ5.0:2000V Between other contact parts:1000V
	Surface Finish	Contact piece with a diameter of 5.0: silver plated on the surface and nickel plated on the bottom layer Contact parts with a diameter of 1.0 and 2.0: surface gold-plated and bottom nickel plated
	Terminal Style	Socket crimping type, with a diameter of 5.0 and threaded edge connection for the socket, and PCB soldering type for the pin
	Material	Pin、jack	Brass or copper
		Crowm Spring	Beiyllium bronze
