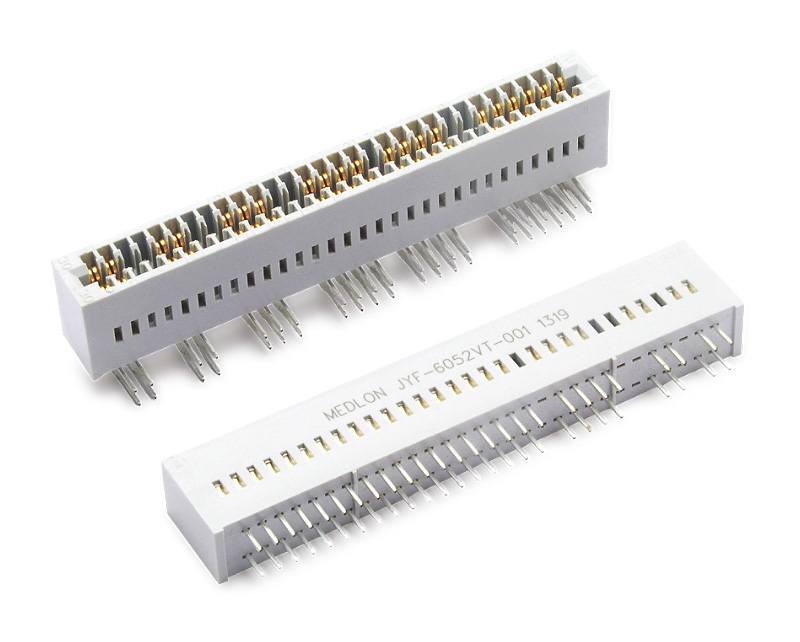

Model Number: JYF-6046RT-601   Pitch 2.54mm  Product Name
Type: Rectangle connector                   Place of Origin:Guangdong, China
Application:PCB                                     Mechanical Life: 500 times
Housing Material: PBT UL94V 0             Contacts material:High conductivity Copper alloy
Working Temperature: -55℃~+125℃   Air pressure:40KPa
Rated Current: 6A(20℃)                         Rated Voltage: 300V AC
Contact Resistance: ≤25mΩ                  Withstand Voltage:750V
Power blade connetor  blade power connector powerblade connector healthy connector mass health connector wire connector ma health connector battery terminal connector

Online Inquiry

JYF-6046RT-601-Model.pdf
Hot Tags: board to board connector power connector round connector

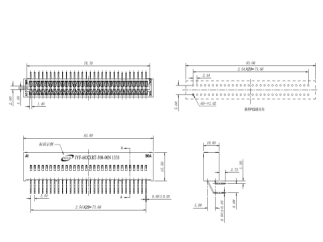

Product Name	Female,R/T,60PIN	Selected by customer		JYF-60XXRT-00N
Quantity of Pin hole in the housing is 60,30PIN at A row & B row, Customer could choose the number and the position of contacts, A&B row has 1-30 Pins from left to right, The distance between two rows contact tail is 2.54mm or 5.08mm
Curved socket: pitch 2.54mm			Curved socket: pitch 5.08mm

Product Application

Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc.

Work environment

Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise）

Relative Humidity ：40℃，90-95%

Air pressure ：40KPa

Vibration：10~500Hz， 100m/s²

Shock： Acceleration300m/ s²

Mian Technical Parameters

Rated Current：3A（20℃）

Contact Resistance：≤25mΩ

lnsulation Resistance：≥1000MΩ

Voltage Rating ：300V AC

Withstand Voltage：750V

Mechanical Life：500 times

Insertion Force Per Pin ≤2N withdraw force Per PIN≥1.2N

Part Number System

JYF –XX YY VT -001

sequence number

contact solder type

Vertical through hole type Right angle through hole type

Quantity of contacts

Quantity of Pin hole in housing

Printed gold finger connector

Current JYP Model list:
JYF 10 PIN	JYF 26 PIN	JYF 44 PIN	JYF 70 PIN
JYF 12 PIN	JYF 28 PIN	JYF 50 PIN	JYF 72 PIN
JYF 14 PIN	JYF 30 PIN	JYP 52 PIN
JYF 16 PIN	JYF 32 PIN	JYF 54 PIN
JYF 20 PIN	JYF 34 PIN	JYF 60 PIN
JYF 22 PIN	JYF 36 PIN	JYF 62 PIN
JYF 24 PIN	JYF 40 PIN	JYF 64 PIN
