JYF-4444RT-001 JYF-4444VT-001 44 Pin RT(Right angle through hole) or vertical Socket Female ,44 PIN MEDLON(MDL)

JYF-4444RT-001 JYF-4444VT-001 44 Pin RT(Right angle through hole) or vertical Socket Female ,44 PIN MEDLON(MDL)

Series: JYF Card-edge Connector
Product Name                   JYF-4444RT-001  JYF-4444VT-001   44 Pin RT(Right angle through hole) or vertical  Socket Female ,44 PIN MEDLON(MDL)                                                         Female,R/A,44PIN                                                                            Selected by customer

Product Name

Female,RT,44PIN

Selected by customer

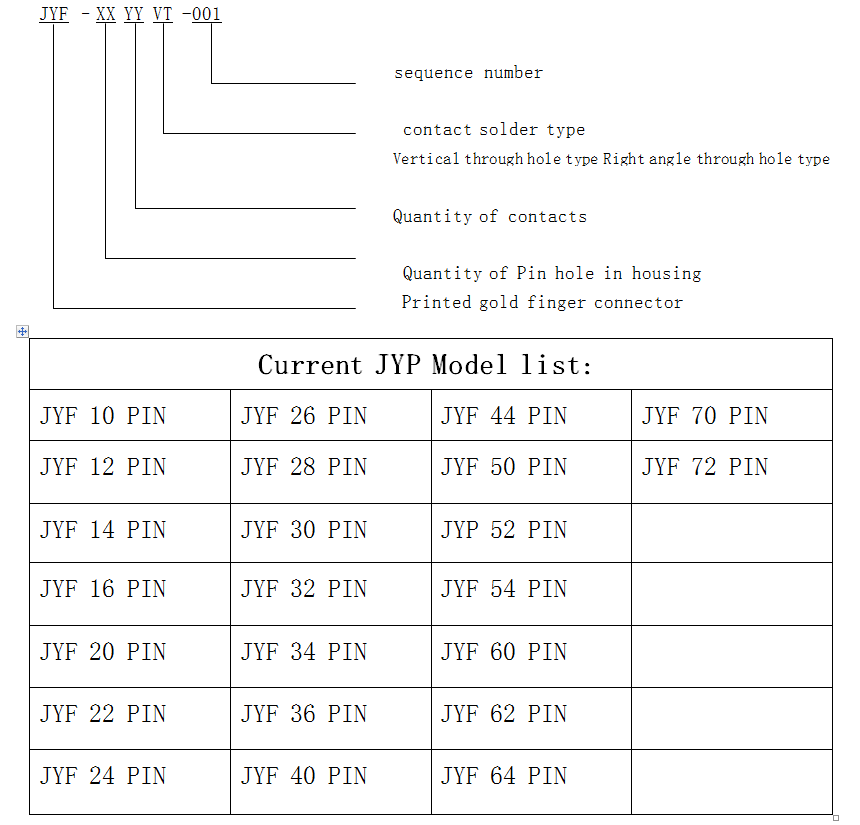

JYF-44XXRT-00N

Quantity of Pin hole in the housing is 44,22PIN at A row & B row, Customer could choose the number and the position of contacts,A&B row has 1-22 Pins from left to right, The distance between two rows contact tail is 2.54mm or 5.08mm

Curved socket: pitch 2.54mm

Curved socket: pitch 5.08mm
